DRY MOULD SYSTEM DMS

Injection and Blow Moulding without mould condensation

When the surface temperature of an object sinks below the dew point of the ambient air, condensation builds on this object.

The answer to this problem is to create a dry climate around the mold. The Dry Mould System (DMS) fills the enclosed mould area with dry process air. Result: The DMS allows the usage of cold water with constant and optimal process temperature without the trouble of condensation.

Operating principle: Process air is running through the DMS in a closed loop circuit. When starting the unit “warm and moist” air in the mould area flows to the dehumidification unit DMS. In the DMS, the air is dehumidified with the help of a special refrigeration unit without the use of any chilled water. The processed air is then supplied to the mould area again, closing the loop.

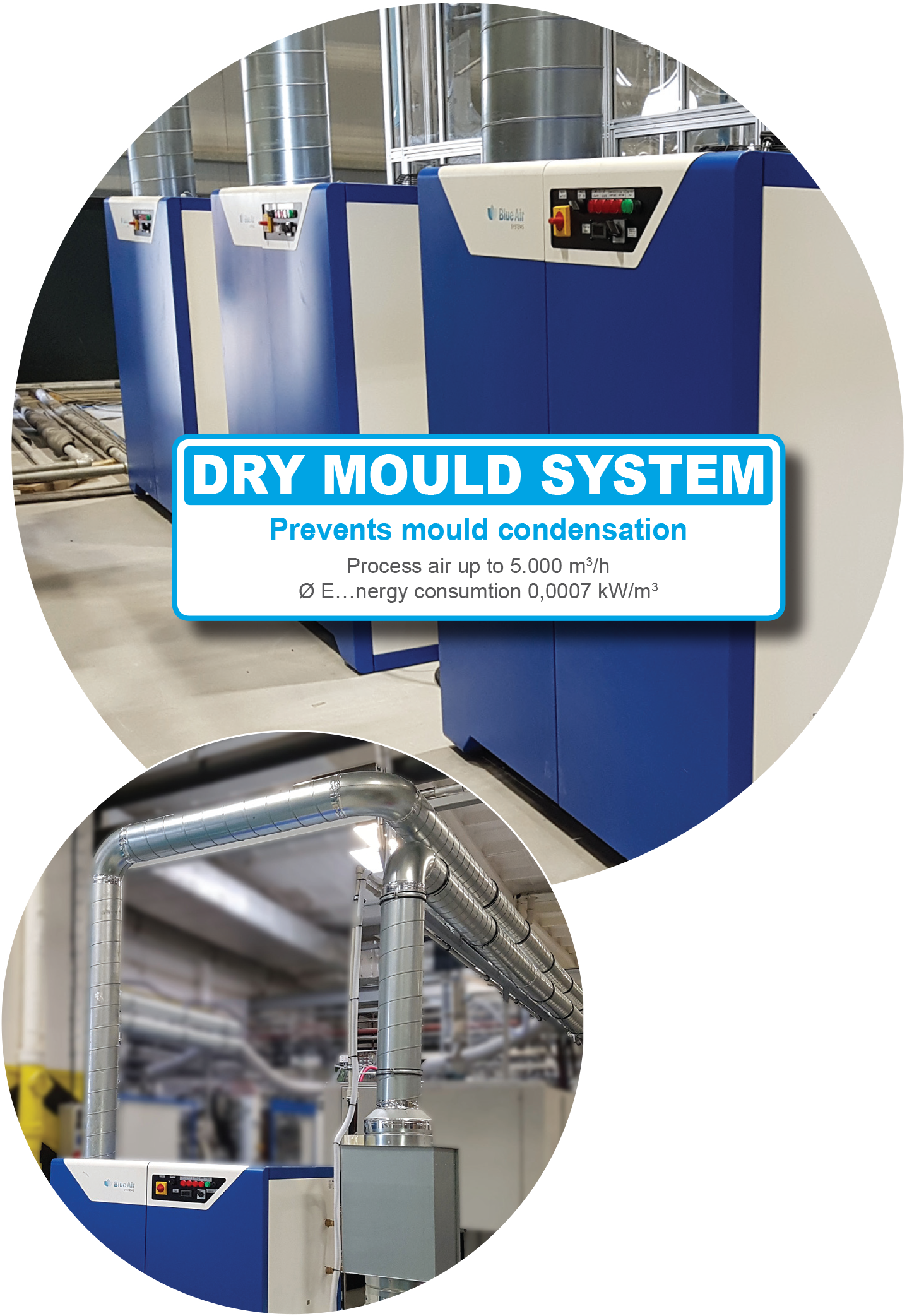

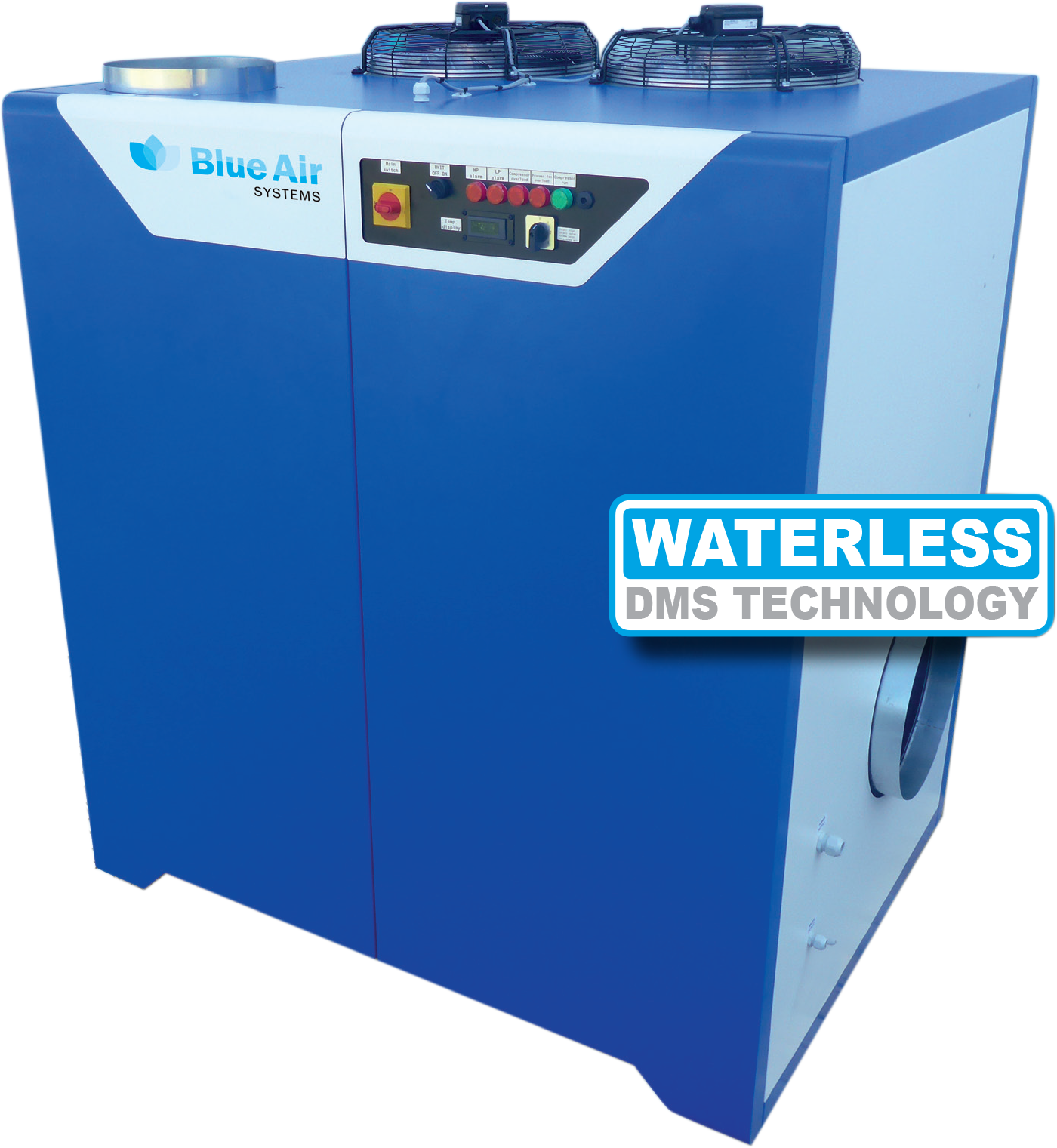

DMS Dry Mould System

Blue Air Systems guarantees condensation free production with a mould cooling temperature as low as 6°C throughout the year, in every weather, in every climate. This means higher productivity and constant product quality. The scope of supply is the dry mold system (standard units from 500 to 2.500 NmÑ/h process air flow) and upon request a tailor made enclosure for the mold area of the production machine. Blue Air Systems uses sliding hoods or easy removable panels which provide simple handling in the production process (fast mold changes).

Advantages :

Condensation free production for optimal mold cooling temperature
Dehumidification without the need of chilled water - NO PRECOOLER needed
State of the art, PWM refrigeration technology for automatic regulated power consumption
Process air running in closed loop circuit
Same production conditions throughout the year
Higher machine efficiency trough shorter cooling time
Suitable for single production machines
Low maintenance expenses
Lowest energy consumption down to 0,0007 kW/m³
Quick return on investment
